You patched that crack in your garage floor two years ago. Now it's back; wider, longer, and creeping toward the drain. Standard cement patches fail because they shrink as they cure. They pull away from the surrounding concrete and leave a gap that water, salt, and freeze-thaw cycles immediately exploit.
Concrete cracks aren't just cosmetic problems. Left untreated, a surface fracture becomes a structural one. Water enters, reinforcement steel corrodes, and slabs deteriorate from the inside out. The fix isn't more patching; it's using the right material for the specific crack in front of you.
Here are the five most common concrete crack types, what causes each one, and how to repair them permanently.
1. Hairline Cracks
Hairline cracks measure less than 0.3 mm wide. They appear on floors, walls, and slabs as concrete dries and undergoes minor shrinkage. They look harmless. They're not. Hairline cracks absorb moisture and widen over time; especially in climates with repeated freeze-thaw cycles. Each freeze expands the crack slightly. Over several winters, that progression adds up.

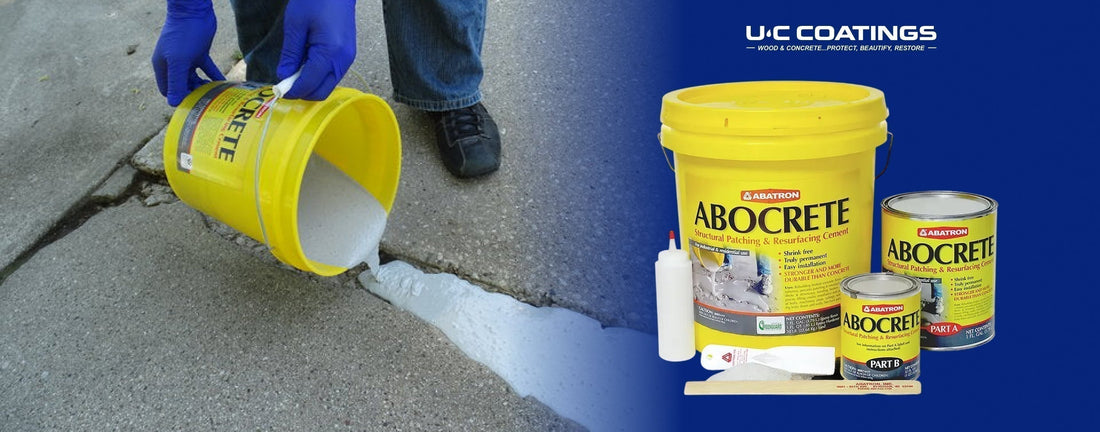

Repair protocol: True hairline cracks can often be bridged rather than filled. Roll or brush Abocrete™ directly over the crack in a single thick coat, then broadcast sand on top while the epoxy is still wet. This mimics the look and texture of concrete and seals the crack completely. One thick coat outperforms multiple thin ones. One gallon covers 80 sq. ft. at 20 mils thick.
2. Plastic Shrinkage Cracks
These form while concrete is still curing, before it fully hardens. Rapid evaporation of surface moisture causes the top layer to shrink faster than the mass below. The result is parallel or random cracks, typically 300 to 600 mm long and up to 3 mm wide.
They rarely threaten structural integrity immediately. But they create direct pathways for water and dissolved salts. Once chlorides reach the reinforcement steel, corrosion begins and repair costs escalate. For wider cracks in high-traffic areas, Abocrete™'s self-leveling properties allow it to flow into horizontal voids without additional tooling; restoring compressive strength and load-bearing integrity in one step.
Repair protocol: Use an angle grinder to open the crack to approximately ¼ inch. For wider cracks, press spray foam or a backer rod into the bottom first to create a seal. Then fill with Abocrete™ mixed with sand to form a trowelable, shrink-free mortar. This structural epoxy bonds chemically to aged concrete without pulling away at the edges. Pot life is 20 to 30 minutes, with full hardening in 1 to 5 hours depending on temperature.
3. Settlement Cracks
Settlement cracks develop when the ground beneath a slab shifts, compresses, or loses moisture. They appear at weak points; doorways, column bases, and slab corners. They often run the full depth of the concrete. These are structural cracks. They signal that load transfer has been disrupted.
In industrial settings, a settlement crack beneath a warehouse floor or loading dock isn't just a trip hazard. It's a failure point under daily forklift traffic and sustained pallet loads.
Repair protocol: Clean out all loose material from the crack perimeter. Apply Abocrete™ in liquid form. Its self-leveling properties allow it to flow into horizontal voids without additional tooling. For larger repairs, self-prime first: brush or roll a coat of liquid Abocrete without sand over the area as a bonding agent, then apply the sand-thickened mortar while that base coat is still wet.
4. Thermal Contraction Cracks
Concrete expands in heat and contracts in cold. Without adequate expansion joints, that movement generates stress the slab can't absorb. Cracks form perpendicular to the surface and often follow joint lines or load paths.
Freeze-thaw cycles compound the damage year after year. Water enters the crack, freezes, expands by roughly 9%, and forces the crack wider. After a few seasons, a 1 mm crack becomes a structural gap that needs more than a cosmetic fix.
Repair protocol: Assess the crack before repairing. If it's still active, opening and closing seasonally, a rigid epoxy alone won't hold long-term. For dormant thermal cracks on vertical surfaces; basement walls, pool walls, and step risers, Aboweld™ 55-1 is the right tool. This non-sag epoxy paste holds its position without slumping. It fills the crack fully, bonds permanently, and can also reattach broken concrete pieces back into place.
5. Overload Cracks
Every concrete mix has a PSI threshold; the point at which sustained or impact loads cause failure. Exceed it and you get overload cracks, often appearing in a star or web pattern radiating from the stress point. Warehouse floors, driveways used for heavy equipment, and parking structures see this regularly.
These cracks compromise slab integrity and must be fully repaired before load is reapplied.
Repair protocol: For large overload repairs, self-prime first. Brush or roll a coat of Abocrete™ without sand over the entire repair area to act as a bonding agent. While that coat is still wet, apply Abocrete mixed with sand aggregate to form a high-compressive-strength mortar. The cured compound resists chemicals, salt, gasoline, and heavy forklift traffic. It doesn't shrink during cure; which is exactly what causes cement patches to fail under repeated load.
Epoxy or Polyurethane: Which Is Right for Your Crack?
Both materials work. The application determines which one you need.
Epoxy is the correct choice for structural restoration. It bonds rigidly to existing concrete and recovers both compressive and tensile strength. Use it on dormant cracks — those that have stabilized and stopped moving. Abocrete™ and Aboweld™ 55-1 are both 100% solids, shrink-free epoxy systems with low VOCs and no solvents.
Polyurethane is better for active cracks and wet conditions. It reacts with moisture, foams to fill voids, and stays flexible after cure. That flexibility accommodates ongoing crack movement. Use it where stopping water intrusion matters more than restoring structural strength.
The decision framework is straightforward: epoxy for structure, polyurethane for active movement and water sealing.
Not sure if your crack is dormant or active? Place reference marks on either side and monitor for 30 days. If the marks shift, the crack is live. If they hold steady, a structural epoxy repair is the right call.
Why Cement Patches Keep Failing
Cement patches rely on water that evaporates during curing. That evaporation causes shrinkage. The patch pulls back from the crack edges, water moves in, and the cycle repeats. Epoxy systems like Abocrete™ are 100% solids - no water, no solvents, nothing to evaporate. The repair bonds permanently to aged concrete and doesn't crack under the same conditions that damaged the original slab.
Fix it once. Fix it right.
Browse U-C Coatings' full line of concrete repair products to match the right solution to your project
